| Professional valve manufacturer |
|

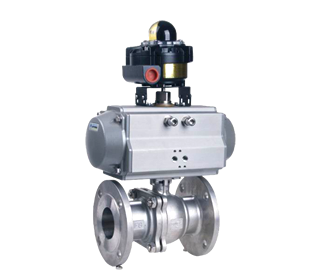

| Pneumatic flange ball valve Q641F-16P (Stainless 301) |
 |
Air drive: compressed air 4-6bar (can bring the handwheel)
Electricity drive: AC220V, AC380V DC24V,
Nominal diameter: 15 ~ 250mm
Nominal pressure: 1.6 ~ 4.0 Mpa
Applicable temperature: PTFE: - 29 ~ + 178 ℃
EK: - 29 ~ + 250 ℃
Connection mode: flange
Body structure: two chip
Body materials: 316L, 316, 304, 304L, carbon steel
Valve ball material: 316L, 316, 304, 304L
Sealing material: PTFE, EK
Applicable medium: gas, water and oil etc
Optional accessories:
Limit switches, the locator, solenoid valve, pressure reducing valve |
|
|
|
|
