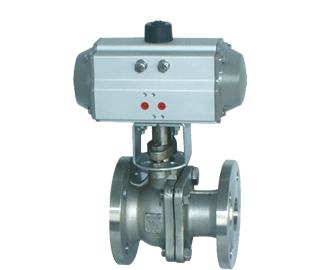

Pneumatic ball valve main technical parameters:
Air driven: compressed air 4 - 6bar(can bring the handwheel)
Electric drive: AC220V, AC380V ,DC24V,
Nominal diameter:15- 250mm
Nominal pressure: 1.6 ~ 4.0 Mpa
pplicable temperature PTFE: - 29 ~ + 178 ℃
EK: - 29 ~ + 250 ℃
Connection mode: flange
Valve structure: two type
Body materials: 316L, 316, 304, 304L, carbon steel
Valve ball material: 316L, 316, 304, 304L
Sealing material :PTFE, EK
Applicable medium :gas, water and oil etc
Optional accessories limit switches, the locator, solenoid valve, pressure reducing valve
|
