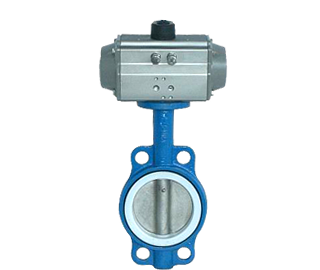

Parameters:
Driver: compressed air 5 ~ 7bar (can bring the handwheel)
The nominal 1200mm (given.it: 50 ~ 25, 32, can manufacture 40)
Nominal pressure: 1.0 ~ 160 MPa
Applicable temperature: EPDM: - 29 ~ + 120 ℃ NBR: - 29 ~ + 80 ℃
Connection: the clip
Valve structure: type A, type, said LT
Body materials: cast iron, carbon steel
Valve plate materlals: 304, 316, nylon board, cast iron, nickel plating aluminum-bronze (salt)
The seat material: EPDM, NBR PTFE
Applicable medium: water and liquid class medium
Optional accessories: limit switches, the locator, solenoid valve, pressure reducing valve
序号
NO |
零件名称
Accessory name |
材质
Material |
| Z |
C |
P |
| 1 |
阀座
Seat |
橡胶
Ruber |
| 2 |
圆柱削
Straight Pin |
45钢
45 Steel |
不锈钢
Stainless Steel |
| 3 |
蝶板
Butterfly Plate |
灰铸铁镀硬铬
Grey Cast-iron Hard Chrome Plating |
碳钢或不锈钢
Simple Steel or Stainless Steel |
不锈钢
Stainless Steel |
| 4 |
阀体
Body |
灰铸铁
Grey Castlron |
碳钢
Simple Steel |
不锈钢
Stainless Steel |
| 5 |
螺柱
Stud |
35钢
35 Steel |
碳钢
Simple Steel |
不锈钢
Stainless Steel |
| 6 |
阀杆
Stem |
45钢
45 Steel |
不锈钢
Stainless Steel |
| 7 |
键
Key |
45钢
45 Steel |
不锈钢
Stainless Steel |
| 8 |
衬套
Bushing
|
铜基粉末冶金
Copper Base Powder Metallurgy |
| 9 |
O形圈
O Ring |
橡胶
Ruber |
| 10 |
气动装置
Pneumatic Device |
|
| 11 |
位置指示器
Location lndicator |
塑料
plastic
| |
