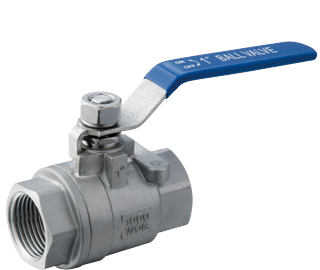

2pc Internal Thread BALL Valve

性能规范 specifications
公称压力 Nominal pressure PN 1.6,2.5,4.0,6.5 Mpa
强度试验压力 Strength testing pressure Pt 2.4,3.8,6.0,9.6
低压气密封试验压力 Seat testing pressure(low pressure) 0.6 Mpa
高压气密封试验压力 Seat testing pressure(high pressure 1.8,2.8,4.4,7.1
适用介质 Applicable medium  水、油、气WATER,oil,Gas 硝酸类 Nitric acid 醋酸类 Acetic acid
适用温度Applicable temperature (150~300℃)

  主要零件材料 Materials of main parts
零件名称 Description of parts
阀体 Body CF8M CF8 WCB
球体 Ball SS304 SS316
阀杆 Stem SS316
密封圈Sealring SS301
填料 Packing SS304
 产品规格(Product specifications ):1/4"" - 4""(DN6-DN100)
工作压力(Work pressure):1000psi
适用温度(Applicable temperature):< 150℃(PTFE) < 300℃(PLL).
螺纹类型(Types of thread):NPT BSPT BSP DIN259/2999
公称压力(Nominal pressure):PN(Mpa)2.5 4.0 6.4
强度试验压力(Strength test pressure):3.8 6.0 9.6
高密封试验压力(High pressure seal test pressure):3.0 4.8 7.6
低压气密封试验压力(Low pressure seal test pressure):0.6 0.6 0.6
适用介质(Applicable medium):水、油品、气、硝酸类、醋酸类等(water oil gas acid)
性能规范 specifications
公称压力 Nominal pressure PN 1.6,2.5,4.0,6.5 Mpa
强度试验压力 Strength testing pressure PT 2.4,3.8,6.0,9.6
低压气密封试验压力 Seat testing pressure(low pressure) 0.6 Mpa
高压气密封试验压力 Seat testing pressure(high pressure 1.8,2.8,4.4,7.1
适用介质 Applicable medium Q11F-(16-64)C 水、油、气WATER,oil,Gas Q11F-(16-64)P 硝酸类 Nitric acid Q11F-(16-64)R醋酸类 Acetic acid
适用温度Applicable temperature (-40~180℃)

  主要零件材料 Materials of main parts
零件名称 Description of parts Q11F-(16-64)C Q11F-(16-64)P Q11F-(16-64)R
阀体 Body WCB ZG1Cr18Ni9TiCF8 ZG1Cr18Ni12Mo2TiCF8M
球体 Ball 1Cr18Ni9Ti304 1Cr18Ni9Ti304 1Cr18Ni12Mo2Ti316
阀杆 Stem 1Cr18Ni9Ti304 1Cr18Ni9Ti304 1Cr18Ni12Mo2Ti316
密封圈Sealring 聚四氟乙烯 Polyterafluoroethylene(PTFE)
填料 Packing 聚四氟乙烯 Polyterafluoroethylene(PTFE)

  主要外形尺寸 Main outer size
DN G D L H W
6 1/4″ 10 56 50 90
10 3/8″ 12 56 50 90
15 1/2″ 15 75 58 100
20 3/4″ 20 80 62 120
25 1″ 25 90 72 140
32 1¼″ 32 110 80 140
40 1½″ 38 120 90 180
50 2″ 50 140 98 200
65 2½″ 64 160 72 220
