Professional valve manufacturer

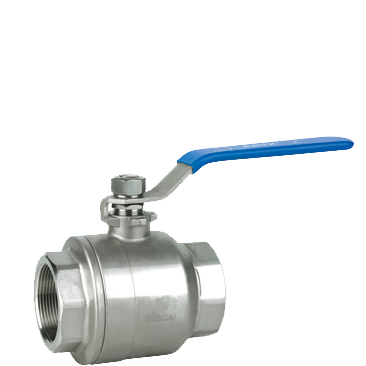

(2000WOG) internal thread ball valve (fire type)

产品规格(Product specifications ):1/4"" - 4""(DN6-DN100)
工作压力(Work pressure):1000psi
适用温度(Applicable temperature): -20~232℃~350℃
|螺纹类型(Types of thread):G.NPT.BSPT.BSP.DI259/2999
公称压力(Nominal pressure)PN(Mpa):1.6-6.4MPa
适用介质(Applicable medium):水、油品、气、硝酸类、醋酸类等(water oil gas acid

连接方式(Connection mode):内螺纹(threaded)
流动方向(Flowing direction):双向(two-way)
